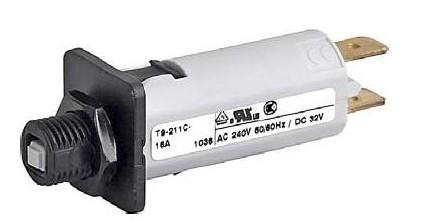

The circuit breaker type T9-211 is a new addition to the SCHURTER T9 family of products. Its neck is designed with threads for the plastic nut PA66. Due to the use of plastic nuts, this product extension is in compliance with China's Restriction of Hazardous Substances (RoHS). In addition, the full range of T9 products extends to lower 3A rated currents.
IP 65 rated caps can be placed over the neck of a threaded product to protect the product from environmental factors such as dust or water spray. The unique rear style supports different panel thicknesses (0.5 – 3.0 mm). The full range of products are fully diversified in design to meet the various equipment needs of consumers.
Circuit breakers with fuse holders are an ideal replacement for panel-mounted fuses that typically cause false trips due to transient currents or premature aging of fuse components during use. Reconnecting the circuit avoids unnecessary downtime and reduces maintenance costs associated with replacing the fuse. In addition, because the replacement of the fuse with the wrong rated current can cause damage to the equipment, the product can also eliminate the possibility of this happening. Another benefit of using a circuit breaker is to signal a circuit interrupt. When a trip occurs, the recovery button protrudes and remains in a depressed state after being pressed again. The periodic automatic release ensures the operational safety and reliability of the T9 series.
Typical applications include various power supplies, UPS (uninterruptible power supplies), PDUs (power splitters), heavy duty machine tools, industrial appliances, medical diagnostics and analytical instruments, lighting, sports and entertainment equipment, or heating, ventilation and air conditioning products. The T9 series meets the indirect contact protection UL1077 standard, CSA C22.2 235, IEC 60934 and GB17701. The rated current range is 3 – 16 amps at 240 VAC and 48/32 VDC.
Floating Board To Board Connector
FLOATING Board to Board Connector
FLOATING Board-to-board (BTB) connectors as the name indicates is used for connecting circuits board together. This kind of connectors are suitable for stacking circuits boards one over another. Flat flexible cables can be avoided using these kinds of connectors; moreover it makes the entire unit more compact. The commonly used BTB connectors are SMT connectors and Berg Strip. We will discuss about them in detail in the following section.
SMT CONNECTOR
Surface Mount Technology (SMT) connector is a commonly found board-to-board connector in advanced circuit boards. As the name indicates this connector is available only in surface mount model. It is carefully mounted on to the solder pads on the surface of the PCB.
SMT connectors are ideal candidate for miniaturization due to their small area of occupancy and stacking height. They are suitable for double layered or multilayered PCBs. They are designed for high performance and reliability.
They commonly found in advanced circuit boards in networking equipment, telephones, mobile phones, computers and other consumer electronics.
